Some Examples of Echograms, Echographic Techniques and Echographic Diagnoses as taught and explained in our courses and workshops:




                            Case # 1                                              Case # 2                                        Case # 3

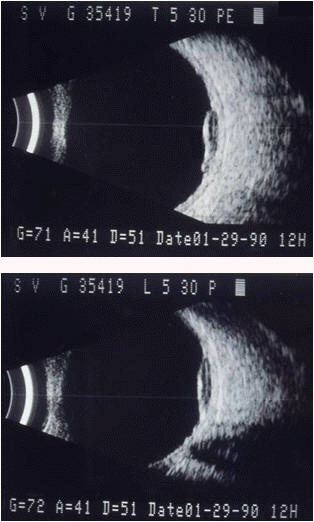

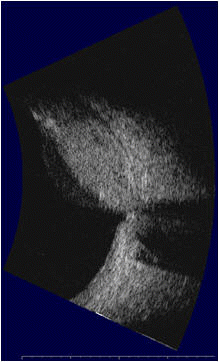

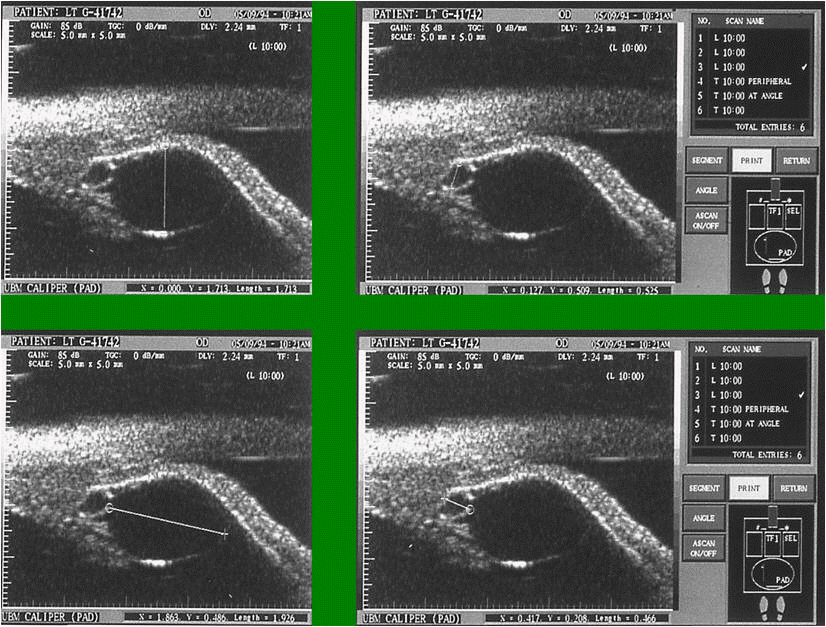

              B-scan:  diagnoses                           UBM- B-scan: diagnoses Iris Cyst        B-scan: shows Choroidal Tumor
                  Choroidal Melanoma

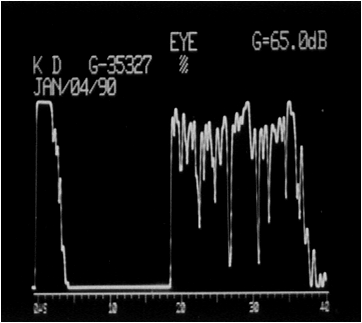

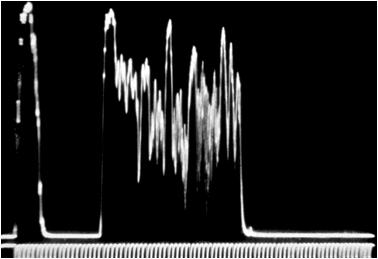

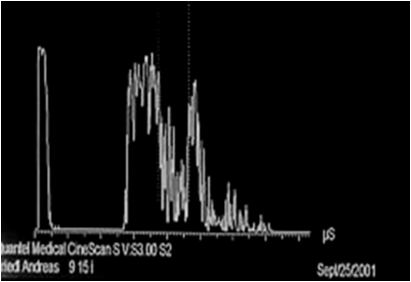

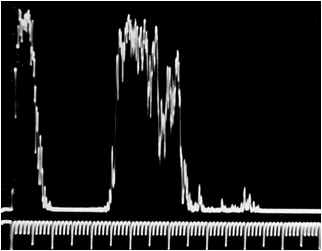

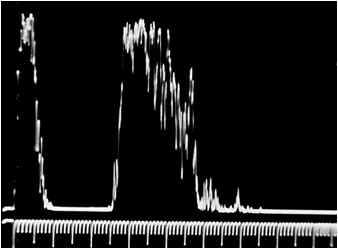

       Standardized A-scan: confirms                                                                               Standardized A-scan: diagnoses

                         Malignant Melanoma                                                                                                       Malignant Melanoma


-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------


                          Case # 4                .............................Case # 5..............................
          Immersion Method
UBM-B-scan:Solid Iris Tumor    Standardized A-scan Diagnosis:

longitudinal scan           malignant iris melanoma
(between arrows)



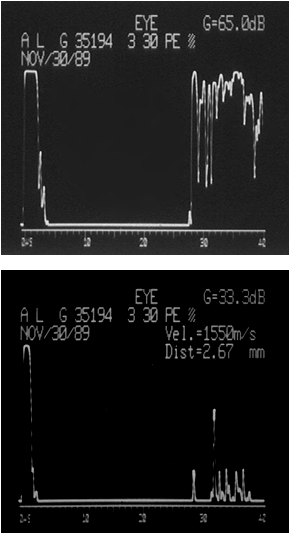

Axial Eye Length Measurement                          transverse scan

      ---------------------------------------------------------------------------------------------------------------------------------------------

          other TUMORS of posterior eye segment:

                                  ...................................Case # 6...................................

                                            Small Cell Carcinoma from the lung metastatic to choroid OS





-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

                      ...................................Case # 7...................................

                                            Chorioidal Hemangioma



-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

                  ...................................Case # 8...................................



                                                          Disciform Macula Degeneration





1                                    1 month follow-up shows marked decrease in height



----------------------------------------------------------------------------------------------------------------------------------------------------------------------------

                    Examples of ORBITAL TUMORS:

                             ..............................Case # 9...................................

                                                                      Cavernous Hemangioma (adult type)



---------------------------------------------------------------------------------------------------------------------------------------------------------------------------

                           ...................................Case # 10...................................

                                                                                                       Orbital Lymphoma



---------------------------------------------------------------------------------------------------------------------------------------------------------------------------

                                                     ...................................Case # 11..................................

                       Mixed Cavernous/Capillary Hemangioma in muscle cone of Newborne Baby (Infant-type Hemangioma)



                                   2 days after birth                          after 1 week of treatment (Prednisone)                      5 years later



                                                  OS                                                                                                             OD                               OS

      ------------------------------------------------------------------------------------------------------------------------------------------------------------------------

                            ...................................Case # 12..................................

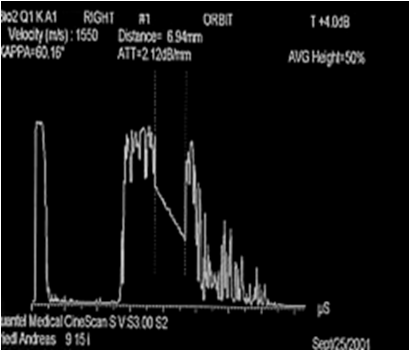

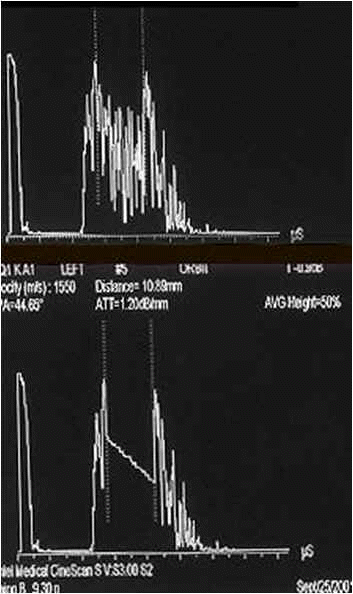

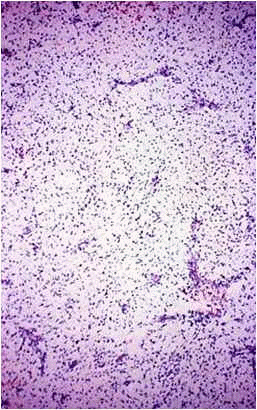

                                                                                                  Rhabdomyosarcoma diagnosed with Standardized Echography



                                                                                                                                        at T+     large angle kappa!

 ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------

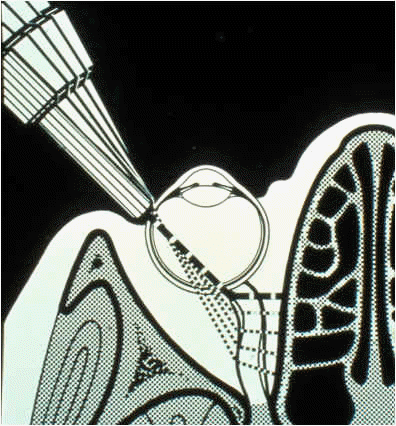

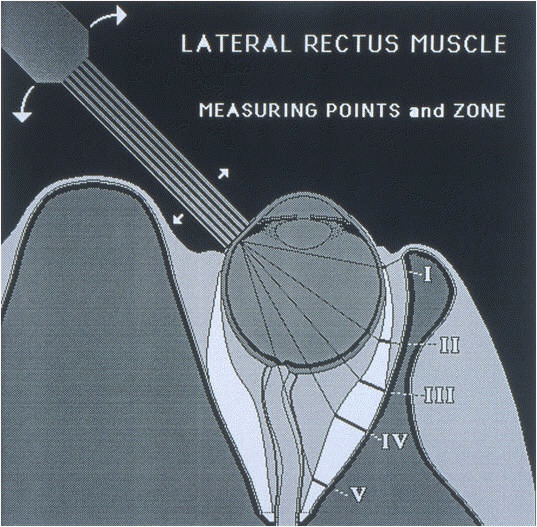

                Measuring Points of Extraocular Muscles (example of medial rectus muscle):



               ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------

                           ...................................Case # 13..................................

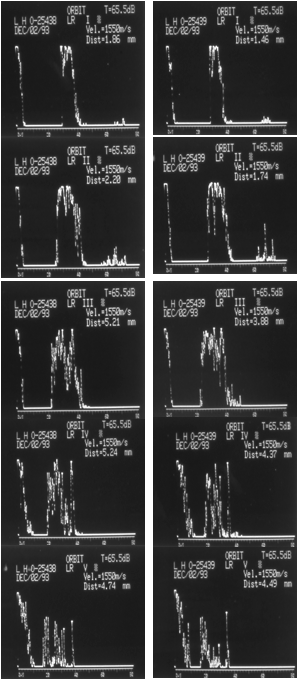

                                               bilateral lateral rectus myositis (OD > OS)









 ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------

                          ...................................Case # 14..................................

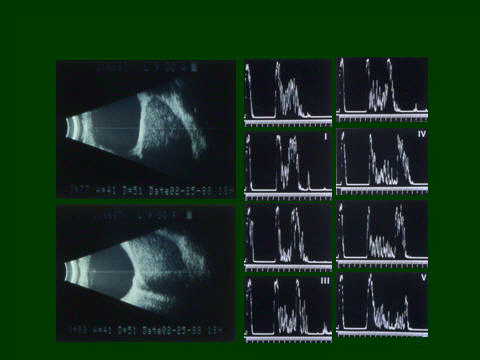

                                        Prostate Cancer (metastasis to left medial rectus muscle)

                  B-scans (longitudinal) show Tumor within Muscle sheaths   A-scans proof Metastatic Carcinoma



                                A-scans from around inserting tendon (I) aiming posteriorly over measuring point III <left column>
                                                        over belly region (IV) to orbital apex (V) <right column>

 ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------

                          ...................................Case # 15..................................

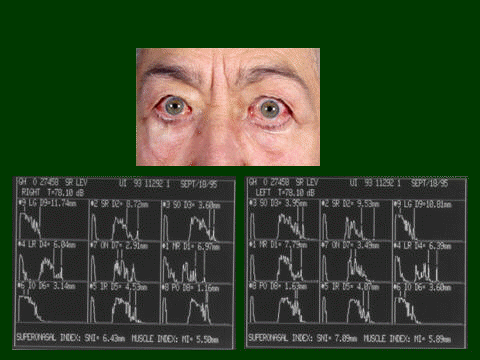

            Measurement of e.o. muscles and Grading of the severity of Graves' orbitopathy (orbital profile, muscle index, superonasal index)



  ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------

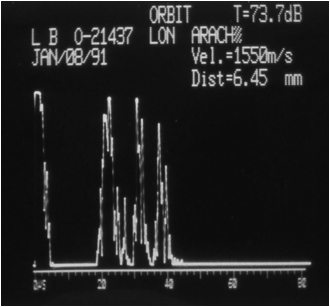

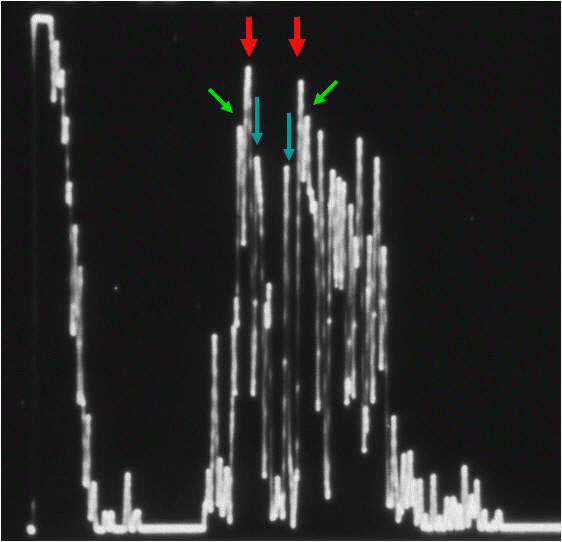

          Optic Nerve Measurements:




                              Red Arrows mark Arachnoidal Diameter  Blue Arrows mark Pial Diameter   Green Arrows mark Dural Diameter

---------------------------------------------------------------------------------------------------------------------------------------------------------------------------

                           ...................................Case # 16..................................

           Increased Intracranial Pressure  (bilateral optic nerve sheath distensions) due to Intracranial Arachnoidal Cyst

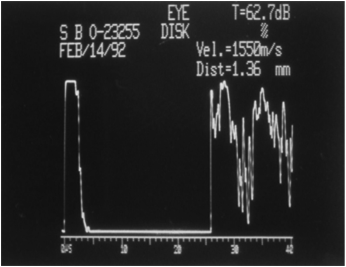

            B-scan showing the increased                  Measurement of arachnoidal       Measurement of  optic disc elevation        unilateral papilledema
         subarachnoidal fluid surrounding                diameter  (normally < 4.5 mm)           (normally about 0.5 mm)
   most anterior optic nerve ("flying bat" sign)
with Standardized A-scan              with Standardized A-scan





Arachnoidal Diameters

                               Before Drainage of  of Cyst     Immediately after Drainage       2 months later



                                    Upper Echograms from Right Optic Nerve      Lower Echograms from Left Optic Nerve

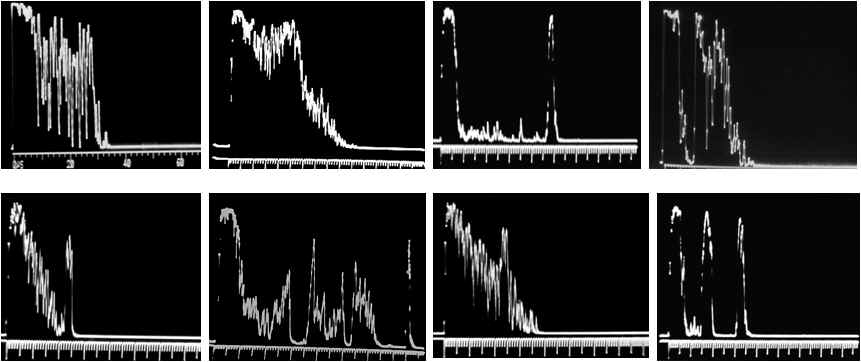

    Differential Diagnoses of orbital tumors using Quantitative Echography (examples of paraocular echograms):

                                         Lymphangioma         Metastatic Carcinoma              Lymphoma                      Serous Cyst



                             Adenoid Cystic Carcinoma       Peri-orbital Malignancy   Cavernous Hemangioma (adult type)    orbital Mucocele

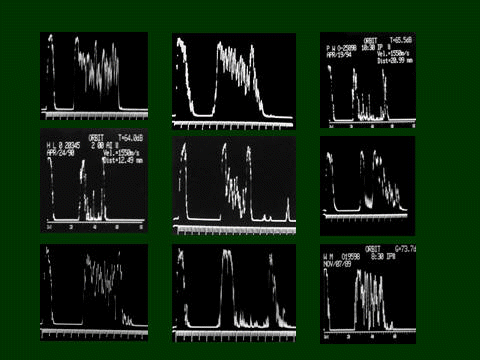

Differential Diagnoses of orbital tumors using Quantitative Echography (examples of transocular echograms):



                         From Left to Right        upper row:   hemangioma (infant type), hemangioma (adult type), lymphoma
                                                             middle row:  lymphoma, adenoid-cystic carcinoma, A-V fistula
                                                             lower row:   hemangioma (adult type), orbital mucocele, lymphangioma

--------------------------------------------------------------------------------------
